新 H2 SENSOR KIT-010-020 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Power supply voltage
- From 9VDC to 28VDC
- Power supply current
- 0.8 A use with 6940.00.056
- Valve output
- Open collector 12VDC/500mA
- Ambient temperature
- 5-35°C (41-95°F)
- Ambient humidity (max, non condensing)
- 80% at 25°C (77°F)
- Ip rating
- IP20
- Hydrogen inlet pressure
- 1 to 9 bar
- Inert inlet pressure
- 1 to 10 bar
- Pressure regulator
- 1 to 9 bar
- Hydrogen sensitivity range
- 0.01% to 1.00% by hydrogen volume (25% LEL, Lower Explosion Limit)
- Accuracy
- ± (5.0% of F.S. + 1000ppm)
- Typical response time
- less than 20 sec
- Communication port
- RS-485
- Protocol
- MODBUS-RTU
- Calibration interval
- 1 year (suggested 180 days)
- Hydrogen sensor technology
- Dioxide semiconductor
- Product life expectancy
- 10 years
- Body temperature range
- -10 °C to 40 °C
- 子类别
- Premium hydrogen sensors
- 产品编号
- 59850035
描述

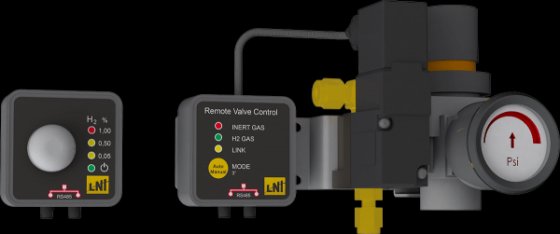

This H2-SENSOR Kit is a security system that constantly detects the amount of Hydrogen present in the working environment of the GC and blocks the Hydrogen generation if it detects an amount greater than the safety threshold.The 6940.00.055 controller reads the percentage of Hydrogen measured by the sensor 6940.00.060 and, if the value exceeds the threshold alarm, the Controller deactivates the solenoid valve in the 6940.00.056 block.The alarm can be signaled to a PC and to a remote device.
