新 SONIMIX 7050 在 米兰, 伦巴第, 意大利
新
规格参数
- 新旧状况
- 新
- Model sx 7050
- SX 7050 2L1RSX 7050 2L2RSX 7050 2L3R
- Flow rate (max)
- 3,5 or 5 L /min (other flow under request)
- Dilution
- MFC (mass Flow Controllers)
- Dilution range
- 10% to 100%1% to 100%0.1% to 100%
- Carrier gas
- Requires dry (-40°C DP) Air, Nitrogen or other
- Accuracy of flow
- ±(0,5% RD + 0,1% FS)
- Repeatability of flow
- 0.2% RD
- Flow control stability
- 0.1% FS
- Flow temperature sensitivity
- zero: < 0,05% FS/°C; span: < 0,05% Rd/°C
- Flow pressure sensitivity
- 0,1% Rd/bar typical N2; 0,01% Rd/bar typical H2
- Inlet pressure
- 3 bar rel
- Outlet pressure
- atm + 150 mb max (other pressure upon request)
- Warm up time
- < 45 min
- Stabilization time
- < 1 min (once the device has warmed up)
- Connections
- Swagelok 1/4″
- Remote command
- RS 232 / Ethernet / USB
- Supply voltage
- 230V/50-60Hz – 115V/60Hz – 100V/50-60Hz
- Rated power (max)
- min 65 to max 150 [Watt]
- Dimensions
- 19″ 3HE/84 TE , 500mm deep / portable casing in option
- Net weight
- 15 to 20 Kg
- 产品编号
- 59850031
描述

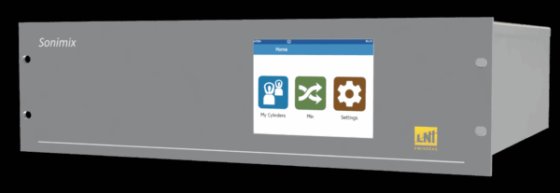

The Sonimix 7050 is a simplified gas mixer based on the principle of gas stream through mass flow controllers (MFC) and mainly used to calibrate and linearize Gas Monitors. Built according to the ISO 6145/7 normalization, the Sonimix 7050 is totally compatible with the US EPA methods and can be easily linked with National Standards (NIST, METAS, UKAS…).The Sonimix 7050 Multi range gas mixer performs a large range of gas mixtures from high concentration gas cylinders
