新 货架面板滚压成型机 在 江苏省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 2）最大线圈
- 1000mm
- 2) 调平电机
- 5.5kw
- 1. 送料机伺服电机功率
- 2.2.9KW+1 带行星减速机
- 3. 伺服电机品牌
- 北京超同步
- 2.corner cut mould
- 2 套（左右两侧可手动调节）
- 3.lateral holes punching mould
- 1 套（位置可手动调节）
- .4.punching
- 液压冲孔
- 5.material of upper and lower mould
- Cr12MOV
- 6. 上下模具的热处理方法
- 淬火HRC58-60
- 4) 轧制厚度
- 最大 1.2 毫米
- 1）切割功率
- 11 kw
- 3）伺服电机控制不停地切割和弯曲
- 5.5kw
- 分类
- 弯曲机 在 中国
- 子类别
- 金属成型机
- 产品编号
- 56411578
描述

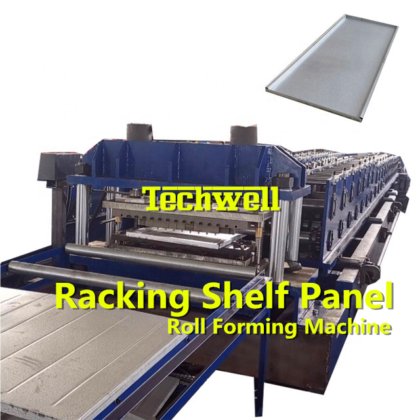

Shelving Panel Roll Forming Machine
Supermarket Racking Shelving Panel Roll Forming Machine
is to produce shelving panels with multi Auto size adjusting system for different panel sizes.
Shelving Panel is used to load the goods or pakages and also display the goods prices and informations, usually the width of panels is various for different load capacity.
The shelf panel profile drawing
NO.
Name
QTY
Remark
1
5T hydraulic decoiler
1 set
1)Max 5T
3)Hydraulic expansion and motorizied decoiling
2
Guiding and leveling
1)2+5+2 rolls leveling
3) Leveling roll dia 90mm
3
Servo feeder
4
Holes Punching & corner cut
4 sets
1.We use hydraulic punching machine
5
Roll forming Machine
1)wall panel catilever structure
2) 20 forming stations
3)7.5KW motor made in China
5) Shaft dia 60mm
Hydraulic Cutting&bending mould combination
2)Cutting and bending Mould :1 set,mould material:Cr12.HRC58-62
6
Run-out table
2pcs
1)Steel frame with Rollers
7
Electric control panel
