二手 Pfiffner - Hydromat HW 25/12 在 Contamine-sur-Arve, 奥弗涅-罗讷-阿尔卑斯, 法国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- 年份
- 1998
- 序列号
- HW25-697
- 库存编号
- 11616
- 品牌：
- Pfiffner - Hydromat
- 型号：
- HW 25/12
- 出厂时间：
- 1998
- 序列号：
- HW25-697
- Posts number
- 12
- Table indexing
- 12 x 30 °
- Collet type
- SCHAUBLIN W25
- Max. clamping diameter
- 25 [mm]
- Max. part length
- 100 [mm]
- Supply voltage
- 3x 400 [V]
- Installed power
- 32 [kW]
- Machine dimensions
- 2700 x 2700 x 2500 [mm]
- Weight
- 4000 [kg]
- Pump hp
- 40 [bar]
- 子类别
- 转移
- 子类别 2
- 数控卧式连续自动工床
- 产品编号
- 32904008
描述

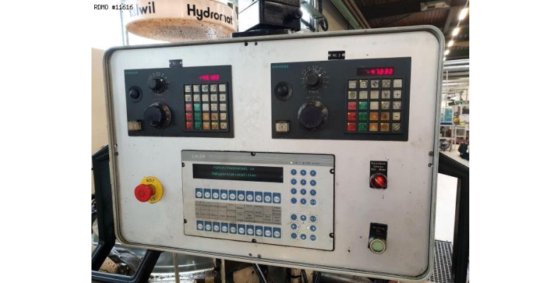

- CNC SIEMENS Sinumerik 805
- Bar feeder HYDROMAT 5.07.018-4, capacity 4200 mm
- Post 1, bucking
- Post 2, longitudinal drilling 30/60
- Post 3, longitudinal drilling 30/60
- Post 4, CNC turning 2 axes
- Post 5, turnaround
- Post 6, radial drilling 30/60
- Post 7, CNC turning 2 axes
- Post 8, inclined drilling 30/60
- Post 9, radial drilling 30/60
- Post 10, inclined drilling 20/50
- Post 11, radial drilling 20/50
- Post 12, longitudinal drilling 30/60
- Ejection between the posts 12 and 1
- Part band conveyor
- Chip conveyor KNOLL 450 K-1/2000
- Lubrication tank KNOLL KTS-25-60-T
- Filtration KNOLL VRF 500
This machine worked with full oil
