二手 Advantest R4136 在 玛丽湖, 佛罗里达, 美国

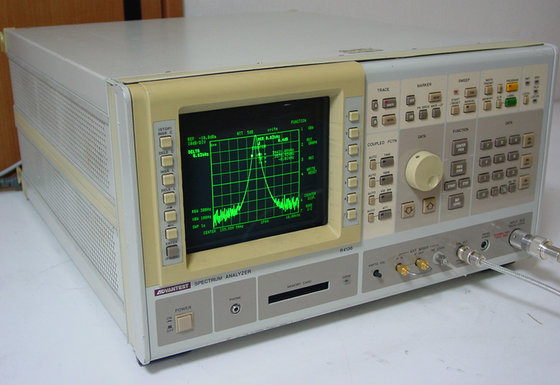

Advantest R4136 20GHz Spectrum Analyzer
The Advantest R4136 is a spectrum analyzer that uses synthesized local
oscillators and high-frequency instrumentation technology, which together make
the instrument capable of analyzing spectrum with high stability. The instrument
has various types of basic performance capabilities. These include: a wide
frequency range from 0.5 kHz to 23GHz (the range can be extended with an
external mixer); a wide input range from -131 dBm to +30 dBm; high resolution up
to a maximum of 30Hz; a residual FM level below 30 hzp-p (frequency less then or
equal to 7.5 GHz, span  less then or equal to 2MHz); proximity noise response of -95.5 dBz/Hz (at a frequency of 20 GHz, 20kHz off the carrier); a dynamic range from 3.5 GHz to 23 GHz at 100dB;
and so on. the instrument also enables high accuracy frequency counting,
occupied bandwidth measurement (option), and adjacent-channel...
