二手 Tektronix TDS744A 在 玛丽湖, 佛罗里达, 美国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Weight
- 27 lb; Size
- Bandwidth
- dc to 500 MHz
- Interfaces
- GPIB, VGA out, RS-232, Centronics
- Sample rate
- 2 GSa/s (1 channel)
- Sweep speed
- 10 s/div to 500 ps/div
- Vertical sensitivity
- 1 mV/div to 10 V/div
- 2f - advanced dsp math 制造商
- Tektronix 模型
- 分类
- 示波器 在 美国
- 产品编号
- 16726993
描述
同类产品
Tektronix TDS744A-05-13-1F-2F
Tektronix TDS744A-05-1M
Tektronix TDS744A-13-1F-2F-1M
Tektronix TDS744A-1M

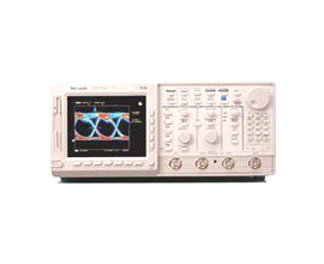

The TDS744A 4 Channel Digitizing Oscilloscope has a bandwidth of 500MHz and a sample rate to 2 GS/s. The maximum record length is 50,000 points per channel. The instrument is fully programmable via GPIB (IEEE 488.2) and has GPIB, RS-232 and Centronics I/O ports.
Features:
Bandwidth: dc to 500 MHz
Vertical Sensitivity: 1 mV/div to 10 V/div
4 input channels
Sample rate: 2 GSa/s (1 channel)
Sweep speed: 10 s/div to 500 ps/div
Color display
Interfaces: GPIB, VGA out, RS-232, Centronics
BNC(f) input connectors
1 megohm or 50 ohm input impedance
90-250 Vac; 45-440 Hz operation
Weight: 27 lb; Size: 193 mm (7.6 in)H x 445 mm (17.5 in)W x 432 mm (17.0 in)D
Options
05 - Video Trigger
13 - RS-232/ Centronics Interface Ports
1F - Floppy Disk Drive
1K - K420 Scope Cart
1M - Extends Record Length
1R - Rackmount Kit
23 - Adds two 750 MHz P6205 Active Probes
24 - Adds four 500 MHz P6139A...
