二手 MARCONI 2018A 在 玛丽湖, 佛罗里达, 美国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Width
- 16.73 in(.65 in)
- Height
- 5.98 in(.23 in)
- Length
- 20.67 in(.81 in)
- Weight
- 35.27 lbs(77.75 lb)
- Modulation
- AM, FM, Phase
- Input power
- Universal (Auto Sense and Switch)
- Ce compliance
- Compliant
- Ul compliance
- Not compliant
- User interface
- Proprietary
- Output accuracy
- 1dB
- Output impedance
- 50 Ohm
- Power resolution
- 0.1 dB
- Harmonics (noise)
- -30 dBc
- Maximum frequency
- 520 MHz
- Minimum frequency
- 80 kHz
- Novram data storage
- Yes
- Time base stability
- 0.1 /mo
- Frequency resolution
- 10 Hz
- Maximum output power
- 13 dBm
- Minimum output power
- -127 dBm
- Test pattern storage
- 20 Patterns
- Non-harmonics (noise)
- -60 dBc
- External modulation inputs
- Yes
- Ports to peripheral devices
- GPIB
- Maximum single-side-band noise
- -130 dBc/Hz
- 子类别
- 讯号发生器
- 产品编号
- 16725306
描述
同类产品
Marconi 2031
Marconi 2031-01
MARCONI TF1066B/1
MARCONI TF2015
Product Description:

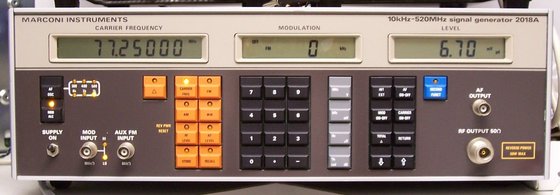

80 kHz - 520 MHz AM/FM Signal Generator
Performance Characteristics:
Minimum Frequency: 80 kHz
Maximum Frequency: 520 MHz
Frequency Resolution: 10 Hz
Time base stability: 0.1 /mo
Minimum Output Power: -127 dBm
Maximum Output Power: 13 dBm
Power Resolution: 0.1 dB
Output Accuracy: 1 dB
Output Impedance: 50 Ohm
Maximum Single-Side-Band Noise: -130 dBc/Hz
Harmonics (noise): -30 dBc
Non-harmonics (noise): -60 dBc
Modulation: AM, FM, Phase
External Modulation Inputs: Yes
Measurements/Features:
High ouput level to 2 V EMF
GPIB Interface
Comp AM, FM, & phase facilitit
Aux FM input
Non-Volatile memory
Second Function Protection
Output Accuracy : 1dB
Programmability/Connectivity:
User Interface: Proprietary
Ports to Peripheral Devices: GPIB
Test Pattern Storage: 20 Patterns
Novram data storage: Yes
Compliance:
CE Compliance: Compliant
UL Compliance: Not compliant
Power Requirements:
Input Power: Universal...
