Marconi 2031-01-08
Marconi 2031-01-02-06
Marconi 2031-01-06

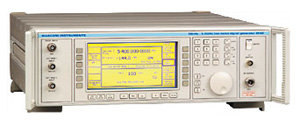

Signal Generator, 10kHz-2.7GHzThe 2031 Signal Generator, operates in the frequency range from 10 kHz to 2.7 GHz with a resolution of 0.1 Hz. The 2031 RF output can be exactly adjusted from -144 dBm to 13 dBm with a resolution of 0.1 dB.
The 2031 offers a built-in modulation oscillator with a frequency range 0.1 Hz to 500 kHz, and Broadband-FM with 10 MHz bandwidth. All data can be entered via keyboard and incremental encoder, fully remote controllable via GPIB. Easy to read LCD display.
2031: 10 kHz to 2.7 GHz
0.1 Hz resolution
-144 to +13 dBm, 0.1 dB resolution
0.1 Hz to 500 kHz modulation oscillator
Optional second internal modulation oscillator
FM, Wideband FM, Phase, AM
Optional pulse modulation
Single, dual, composite and dual composite modulation modes
GPIB (IEEE-488.2)
Options:
001 - Second Modulation Oscillator
002 - Pulse Modulation
005 - GSM PCN Modulation
006 - Avionics, generates internal modulations for...
