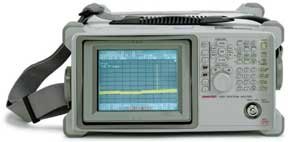

二手 Advantest U3661 在 玛丽湖, 佛罗里达, 美国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- <strong>variety of measurement functions</strong> <table> <tbody><tr valign="top"> <td> <p style="line-height
- 130%;">1Hz resolution counter, occupied frequency bandwidth, adjacent- channel leakage power, AM/FM audio monitoring, AM modulation measurement, dB down measurement, gated sweep.</p> </td> </tr> </tbody></table>
- <strong>50 micros high-speed sweep function</strong> <table> <tbody><tr valign="top"> <td> <p style="line-height
- 130%;">In Zero Span mode (fixed tuning mode without frequency sweep), the sweep time can be set up to 50 Micros. This makes it possible to observe TDMA waveforms for GSM, PDC and PHS, and to perform detailed analysis through magnified display of rising and falling burst waveforms.</p> </td> </tr> </tbody></table>
- <strong>high-stability measurement by means of synthesized local oscillator</strong> <table> <tbody><tr valign="top"> <td> <p style="line-height
- 130%;">Synthesizing of a local oscillator enables measuring the transmission<br> characteristics (ACP, OBW) of narrow-band radio communication facilities.<br> The sideband noise, -105 dBc/Hz or less, achieves the best performance in its class, enabling high-accuracy measurements even in field use.</p> </td> </tr> </tbody></table>
- <strong>battery provides 1.5 hours of operation. three power sources to choose from </strong> <table> <tbody><tr valign="top"> <td> <p style="line-height
- 130%;">The U3661 operates not only on 100/200 VAC power but also on +10 to +16 VDC external power or on the battery pack; threeway power supply. It is designed to operate in any power source environment. The battery pack can be easily attached/ removed by a one-touch operation and rapidly recharged in one hour. It allows approximately 1.5 hour continuous operation on a full recharge, enabling logistically wide-ranging operation such as maintenance/installation work.</p> </td> </tr> </tbody></table>
- 产品编号
- 16723861
描述
同类产品
Advantest U3661-26-72-74
Advantest U3661-20-26-60
Advantest U3661-20-26-60
Advantest U3661-74
Microwave Spectrum Analyzer 9 kHz to 26.5 GHz
The U3661 is a microwave spectrum analyzer with the measurement frequency
range expanded to 26.5GHz as well as the inherited features of the U3641
including the compact body, and battery operation.
It has the weight and performance ideal for field as an indispensable instrument
for maintenance inspection of microwave communication facilities.
This portable analyzer provides enhanced basic performance with high-precision,
high-stability measurements, a minimum sweep width of 1kHz by means of a
synthesized local oscillator, and time domain measurements utilizing 50 Micros
high-speed sweep
The Lightest Spectrum Analyzer in Its Class at 8kg (Max.)
The U3661 has a main unit mass of 9kg or
less (without battery), easily portable for a microwave spectrum
analyzer with a measurement frequency range from 9kHz to 26.5GHz.
Battery Provides 1.5...
