二手 Rohde Schwarz NAS-Z7 在 玛丽湖, 佛罗里达, 美国

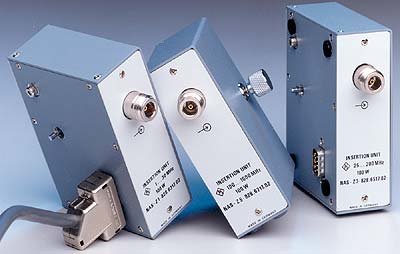

Insertion Unit for GSM900/1800/1900, 30 W
Insertion units are either plugged to the side of the NAS or connected via a 1.5 m long cable for measurements at test points that are difficult to reach. Each insertion unit contains its individual calibration data which are read by the NAS and considered in the measurement results.
Insertion Units NAS-Z6 and -Z7 measure the peak envelope power (PEP) of the clocked signal with due consideration of the timing laid down in the GSM specifications. The insertion units are ideal for measurements on mobile stations which according to definition are sending signals in only one of the eight timeslots. Transient overshoots of the signal bursts are eliminated by a signal-controlled circuit so that the forward and reflected power as well as the SWR can be correctly measured and indicated. 制造商: Rohde Schwarz
模型: NAS-Z7
