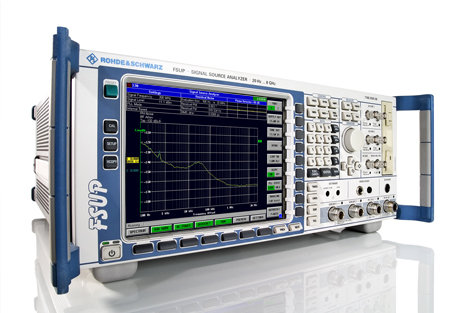

Rohde & Schwarz FSUP26
20Hz-26.5GHz Signal Source Analyzer with integrated Spectrum Analyzer
Offers the user a high-end spectrum analyzer, combined with a phase noise
tester based on the PLL method. In addition, is equipped with two independent,
very low-noise DC ports. Supply voltage and tuning voltage can be individually
defined for each port via a clear-cut menu, which enables control of external
oscillators or a complete characterization. Like an FM/PM/AM demodulator -it
records the oscillator signal over time. With the functionality of a phase
noise tester, time domain and spectrum analyzer combined into a single device.
Features:
Spectrum Analyzer:
Dynamic Range:
DANL: -138dBm
TOI: +12dBm
Resolution bandwidth: 1Hz to 50MHz
Frequency resolution: 0.01Hz
Test port connector: 3.5mm/N female
Phase Noise measurement:
Frequency range: 10MHz to 8GHz
Offset frequency range with internal reference...
