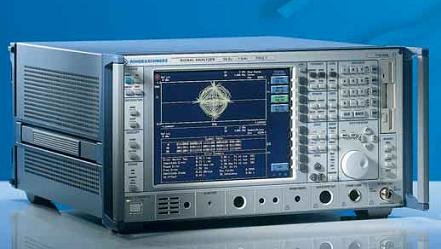

二手 Rohde Schwarz FSIQ03 在 玛丽湖, 佛罗里达, 美国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
描述
同类产品
Rohde Schwarz SMJ100A-B11-B13-B103
Rohde Schwarz SME03-B1-B2-B4-B5-B8-B11
Rohde Schwarz SMU200A-B10-B13-B14-B17-B103-K49-K62
Rohde Schwarz SMV03-R3
Signal Analyzer 20 Hz to 3.5 GHz
Features
3 models and frequency ranges
FSIQ 3: 20 Hz to 3.5 GHz
FSIQ 7: 20 Hz to 7 GHz
FSIQ 26: 20 Hz to 27 GHz
Resolution bandwidth 1 Hz to 10 MHz in 1/2/3/5 steps
5-pole resolution filters with high selectivity
FFT filter with 1 Hz to 1 kHz RBW for fast measurements
Displayed average noise floor typ. -150 dBm in 10 Hz bandwidth
Third-order intercept +20 dBm with FSIQ 7, +22dBm with FSIQ26
Phase noise -150 dBc/Hz at 5 MHz offset
75 dB ACPR dynamic range for W-CDMA (4.096 MHz integration BW)
Total measurement uncertainty <1 dB up to 2.2 GHz, <1.5 dB up
to 7 GHz
RMS detector for high-precision power measurements irrespective of
waveform
Fast spectrum analysis with 5 ms sweep time for full span (FSIQ3/7)
Fast time domain analysis with 1 Micros zero span sweep time
Integrated broadband vector signal...
