二手 Tektronix MSO5104 在 玛丽湖, 佛罗里达, 美国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
描述
同类产品
Tektronix DPO5104B
Tektronix MSO5104B
Tektronix TDS5104B
Tektronix TDS5104B-18

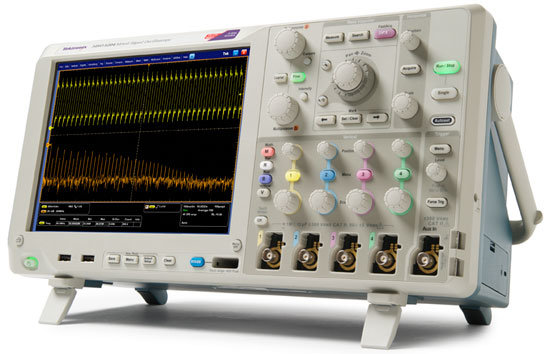

1 GHz Mixed Signal Oscilloscope, 10/5 GS/s (2/4 ch), 12.5M record length, 4+16
channel.
Key Performance Specifications
1 GHz Bandwidth Models
16 Digital Channels
Up to 10 GS/s Real-time Sample Rate on One or
Two Channels and up to 5 GS/s on All Four Channels
Up to 250 Megapoint Record Length with MultiView
Zoom
>250,000 wfms/s Maximum Waveform Capture Rate
with FastAcq
FastFrame Segmented Memory Acquisition Mode with
>310,000 Frames per Second Capture Rate
Standard Passive Voltage Probes with Less than 4
pF Capacitive Loading and 500 MHz or 1 GHz Analog
Bandwidth
User-selectable Bandwidth Limit Filters for
Better Low-frequency Measurement Accuracy
Suite of Advanced Triggers
Options
2RL 25M/Ch
5RL 50M/Ch
10RL 125M/Ch
SSD Solid State Hard Disk Drive greater than or equal to GB
DDRA*3 DDR Memory Bus Analysis
DJA Jitter & Eye Analysis Tools - Advanced (DPOJet)
ET3*4 Ethernet Compliance Testing
LT...
