二手 Rohde Schwarz FSQ26 在 玛丽湖, 佛罗里达, 美国

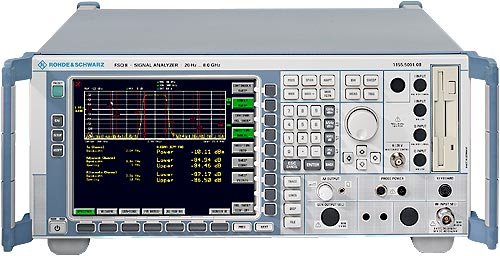

Signal analyzer 20 Hz - 26.5 GHz information bandwidth 28 MHz
The R&S FSQ is the solution for all development and production measurement tasks. It offers very low phase noise, unsurpassed low residual EVM, a wide dynamic range and above-average accuracy, making it the ideal high-end measuring instrument for development applications, where tolerances and limit values must often be lower than defined in a standard
Key Facts:
Frequency range from 20 Hz to 3.6/8/26.5/40 GHz
28 MHz signal analysis bandwidth, optionally 120 MHz
Outstanding RF characteristics:
TOI typ. +25 dBm
1 dB compression point +13 dBm
84 dBc ACLR/3GPP with noise correction
-173 dBm (1 Hz) displayed average noise level (DANL) with noise correction and R&S FSU-B24 preamplifier
Analysis of signals in the analog and digital baseband
Numerous firmware applications extending the signal analysis capabilities
16 Msample...
