二手 Anritsu MS2725C 在 玛丽湖, 佛罗里达, 美国
二手
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- Danl
- 160 dBm in 1 Hz RBW @ 1 GHz preamp On
- Traces
- Normal, Max Hold, Min Hold, Average, # of Averages
- Markers
- 6, each with a Delta Marker, or 1 Reference with 6 Deltas
- Measure
- Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Masks
- Detectors
- Peak, Negative, Sample, Quasi-peak, and true RMS
- Limit lines
- up to 40 segments with one-button envelope creation
- Phase noise
- 100 dBc/Hz @ 10 kHz offset at 1 GHz
- Dynamic range
- > 104 dB in 1 Hz RBW
- Frequency accuracy
- +/- 25 ppb with GPS On
- Trace save-on-event
- crossing limit line or sweep complete
- Interference analyzer
- Spectrogram, Signal Strength, RSSI, Mapping
- 产品编号
- 16716177
描述
同类产品
Anritsu MS610C
Anritsu MS2711-5
Anritsu MS2711D-21
Anritsu MS2711D-03-10

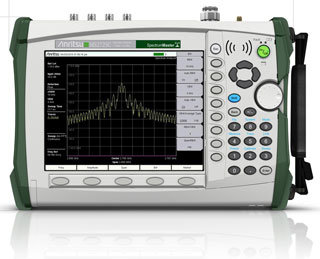

Spectrum Master Frequency Range: 9 kHz to 32 GHz
The Spectrum Master MS2725C features over 30 analyzers in one to meet
virtually every measurement need. In addition to spectrum analysis a user can
select optional capabilities and analyzers including:
High Accuracy Power Meter
Interference Analyzer
Channel Scanner
140 MHz Zero-Span IF Output, 30 MHz bandwidth
GPS Receiver
Increase frequency accuracy, geo-tag data collection
Secure data operation
3GPP Signal Analyzers
LTE, GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSDPA
3GPP2 Signal Analyzers
CDMA2000 1X, CDMA2000 1xEV-DO
IEEE 802.16 Signal Analyzers
Fixed WiMAX, Mobile WiMAX
For post processing data collected on your instrument utilize Master Software
Tools a PC program included with the instrument. It provides powerful data
analysis tools for spectrum clearing and interference monitoring. And the Remote
Access Tool allows the user to see and control the...
卖家评论
$17,992 USD
