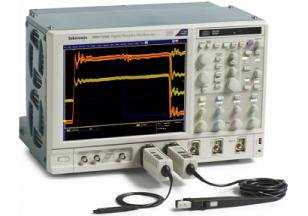

二手 Tektronix DPO7354C 在 玛丽湖, 佛罗里达, 美国

3.5 GHZ digital phosphor oscilloscope
The DPO7000C Digital Phosphor Oscilloscopes contain the high waveform capture rate, advanced triggering, protocol decode and search capabilities needed to debug, characterize and analyze serial data, RF, memory and general purpose devices.
Key Performance Specifications
3.5 GHz Bandwidth Models
Up to 40 GS/s Real-time Sample Rate on One Channel, up to 20 GS/s on Two Channels, and up to 10 GS/s on Three or Four Channels
Up to 500 Megapoint Record Length with MultiView Zoom
>250,000 wfms/s Maximum Waveform Capture Rate with FastAcq
FastFrame Segmented Memory Acquisition Mode with >310,000 Waveforms per Second Capture Rate
User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
Ease-of-Use Features
Pinpoint Triggering provides the Most Flexible and Highest Performance Triggering, with over 1400 Combinations to Address Virtually Any...
