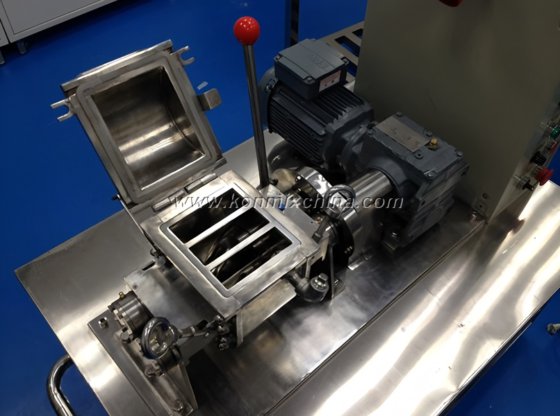

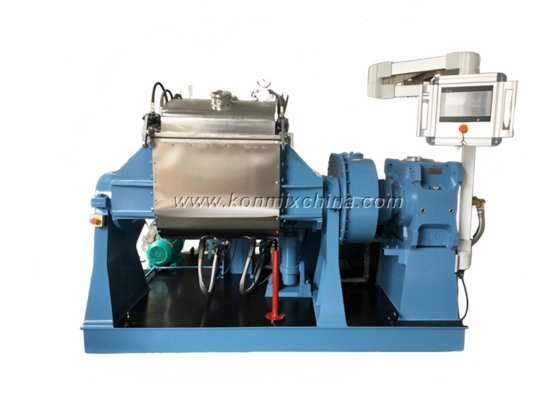

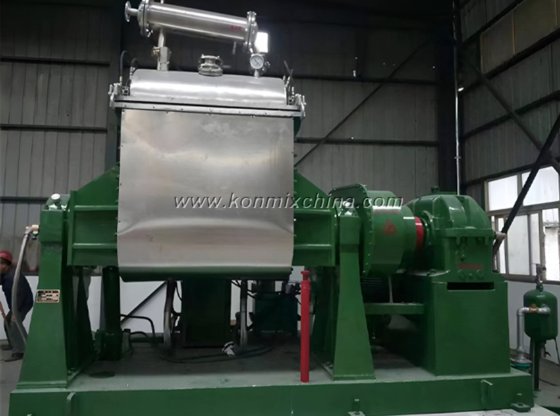

新 Konmix Kneading Machine With Heating Function 在 上海市, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- The kneading machine mainly consists of five major parts
- the mixing section, the base section, the hydraulic system, the transmission system, and the electrical control system. The hydraulic system is operated by a hydraulic station to control the large cylinder for opening and closing functions. The hydraulic system also controls the cylinders to perform functions such as flipping the cylinder and lifting the lid. Detailed parameters can be chosen and required by the user at will, making operation convenient and reliable. The transmission system comprises an electric motor, a reducer, and gears, with the motor matched according to the model of the kneading machine.
- Production capacity
- 5~10,000Liter;
- Applicable materials
- Sigma kneading mixer is widely used in the mixing, kneading, crushing, stirring, vulcanization, re-polymerization of high viscous & high elasto-plastic materials.
- It is particularly suitable for industries such as
- chewing gum, bubble gum, toothpaste, plastics, rubber, silicone rubber, dyes, pigments, inks, food gums, pharmaceuticals, architectural coatings, carbon, cellulose, high-viscosity sealants, aluminum paste, silicone, pulp, cellulose, battery pastes, dyes, organic silicon resins.
- Models
- Chamber(L) | Suggested feeding(L) | Main power(kw) | Discharging ways | Heating ways
- Knh-5
- 5 | 3 | 1.5 | Manual rotation/conveyor | Electric heating
- Knh-10
- 10 | 6 | 2.2 | Manual rotation/conveyor | Electric heating
- Knh-50
- 50 | 30 | 4 | Manual rotation/conveyor | Electric heating
- Knh-100
- 100 | 60 | 7.5 | Hydraulic turning/conveyor | Electric heating
- Knhe-200
- 200 | 120 | 11 | Hydraulic turning/conveyor | Electric heating
- Knhe-300
- 300 | 180 | 15 | Hydraulic turning/conveyor | Electric heating
- Knhe-500
- 500 | 300 | 30 | Hydraulic turning/conveyor | Electric heating
- Knhe-1000
- 1000 | 600 | 37~55 | Hydraulic turning/conveyor | Steam heating
- Knhe-1500
- 1500 | 900 | 45~90 | Hydraulic turning/conveyor | Steam heating
- Knhe-2000
- 2000 | 1200 | 55~110 | Hydraulic turning/conveyor | Steam heating
- Knhe-3000
- 3000 | 1800 | 75~132 | Hydraulic turning/conveyor | Steam heating
- Knhe-4000
- 4000 | 2400 | 90~160 | Hydraulic turning/conveyor | Steam heating
- 子类别
- Sigma mixer
- 产品编号
- 111492783
描述
The kneading machine is also called " sigma mixer machine ".
It is the ideal equipment for kneading, mixing, curing and polymerization of high viscosity and elastic-plastic materials.
It is often used in the production of silicone rubber, sealant, hot melt glue, food glue base, pharmaceutical preparations, etc.
It is a special kind of mixing equipment and the most commonly used is using two sigma blades, differential side by side, namely a mixing propeller speed, a mixing propeller speed, in order to produce shear force, different paddles make mixing material can be cut quickly, so that the material can mix very well.
• This kneader generally adopts a whole chassis for easy installation.
• Using the bevel gear or hard toothed reducer to make the transmission between the main engine smooth.
• With low running noise and long working life.
• Stirring Z paddle and chamber are made of stainless-steel to ensure the purity of products.
