二手 Dionex DX 500 在 布拉丁根, 巴登-符腾堡州, 德国
二手
最近增加
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 二手
- 库存编号
- 010043
- Objektnummer
- B00010043
- Objektbezeichnung
- Dionex DX 500
- Stainless steel
- 8-µL volume, 10-mm path, 5 MPa (750 psi) max
- Titanium (optional)
- 8-µL volume, 10-mm path, 5 MPa (750 psi) max
- High pressure (optional)
- 3-µL volume, 6-mm path, 40 MPa (6000 psi)
- Loop
- Delivers sample rapidly to sample loop
- On
- Displaces excess sample and
- Off
- Delivers sample and any trapped air directly to injection valve
- Four working electrode options
- gold, platinum, silver, and glassy carbon.
- Noise
- 1 pA (DC amperometry); 20 pC (integrated amperometry)
- Potential ranges
- ±2.00 V in 0.01-V increments.
- Maximum operating pressure
- 0.7 MPa (100 psi).
- Filter
- 0 to 10 s response time.
- Offset
- To full-scale for each range.
- Analog signal output voltage
- 0.01, 0.1, or 1 V.
- Flow rate setting resolution
- 10 µL/min
- Maximum pressure
- 35 MPa (5000 psi) for both microbore and standard pump heads.
- Flow accuracy
- ±0.5% of setting.
- Proportioning accuracy
- ±1% for standard pump; ±2% for microbore pump.
- Pressure pulsation
- 0.2% of system pressure (in pressure mode).
- Operating humidity range
- 5 - 95% relative, noncondensing.
- Dimensions
- 33.5 cm h x 22.5 cm w x 42 cm d (13.1 in. x 8.8 in. x 16.4 in.)
- Weight
- 16.1 kg (35.3 lb); 19.5 kg (43 lb) with degas option.
- 分类
- 色谱 在 德国
- 子类别
- Archiv
- 子类别 2
- Chromatographie
- 产品编号
- 110577734
描述

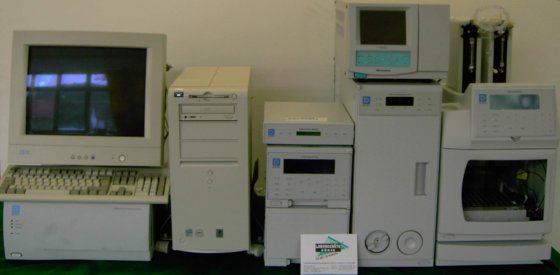

Dionex HPLC-Anlage DX 500. Chromatographie Ofen LC 30. Autosampler AS 50. Gradientenpumpe GP 50. Detektor PDA 100. Interface U 120. Shodex RI Det. 101. Baujahr: 10/02. Neupreis: 142.000,- Euro.
Firma:
Dionex
Modell:
DX 500
Nachfolgende Abbildungen und Beschreibungen sind modellbezogen und aus Prospekten entnommen.
Sie geben nicht den Lieferumfang des Systems wieder.
Den exakten Lieferumfang entnehmen Sie bitte aus dem Angebotstext.
Specifications
Signals
Up to nine, each defined by a sample wavelength and bandwidth.
Noise
＜ ±25 }SAU, 250 nm 4-nm bandwidth
Drift
＜ 1 mAU/hr, 250 nm, empty cell
Wavelength Range 195 Â 600 nm
Wavelength Accuracy ± 1 nm
Resolution
1 nm Digital
Spectral Acquisition
Selectable, 240, 320, 640, 1280, 2000 ms
Light Source
Deuterium; 1000 hrs
Flow Cells
Prep (optional): variable volume and path, 2 MPa (300 psi) max: 0.8-µL volume, 0.1-mm path 1.6-µL volume, 0.2-mm path 4.0-µL volume, 0.5-mm path
Diode Array Thermostat
3-stage temperature control:
