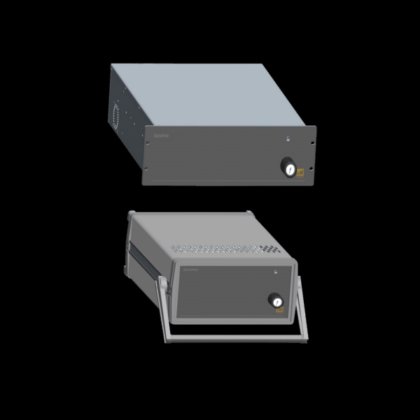

新 SONIMIX 3052/3057 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Models sonimix
- 30523057
- Flow rate (max)
- 5 L/min
- Outlet pressure
- 3,5 bar
- Remaining pollutant levels
- SO₂ & O₃ < 1 µg/m³ (0.5 ppb) NO & NO₂ < 1 µg/m³ (0.5 ppb) HCnm < 0.02 mg/m³ (50 ppb) HCm < 0.02 mg/m³ (50 ppb, with catalysis oven) BTEX < 1 ppb CO < 0.06 mg/m³ (50 ppb, with catalysis oven or cold filter)
- Supply voltage
- 220 VAC / 50 W (200 W with catalysis oven)
- Gas connections
- Quick-connect double ring system
- Stabilization time
- < 10 min (<15 min with catalysis oven)
- Dimensions (w x d x h)
- 19 x 36 x 50 cm deep19″ – 3U – 50 cm deep
- Net weight
- 10–15 kg depending on configuration
- Scrubber life
- Annual preventive maintenance (for daily 1 h use)
- Command mode
- ON/OFF switch on rear panel
- Temperature
- 5 to 40 °C
- Humidity (max, non condensing)
- 80% [5-35°C (41-95°F)]
- Noise
- 70 dB(A)
- 产品编号
- 106730826
描述
The self-regenerable zero air generator SONIMIX 3052/3057 is designed to supply high-purity air without the need for pressurized cylinders.Optimized for use in Air Pollution Monitoring (APM) networks, this unit is the ideal companion to SONIMIX calibrators and gas dividers, including SONIMIX 3022, SONIMIX 6000 C2, and PermaCal systems.SONIMIX 3052/3057 provides high-quality carrier or zero air for a wide range of gas analyzers. The unit filters, dries, and cleans ambient air from pollutants including HC, CH₄, CO, NO, NO₂, O₃, and SO₂. Air is compressed (internally), filtered, dried via a self-regenerating molecular sieve, and purified through a multistage scrubber system, including an optional hot catalysis module.
