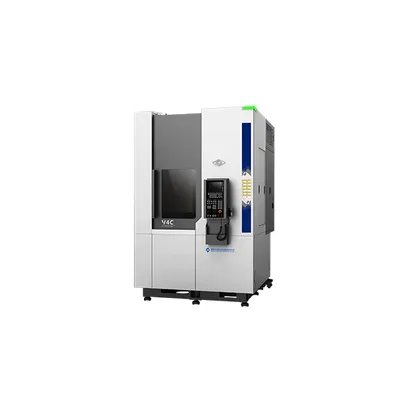

新 沈阳 (SYMG) V4c 数控车床立式车床 在 温州市, 浙江省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 最大回转直径
- Φ650 毫米
- 最大切割高度
- 500 mm
- 最大车削直径
- Φ500 毫米
- 主轴鼻
- A2-8 -
- 速度
- 50-2500 转/分钟
- 权力
- 15/18.5 kW
- 最大输出扭矩
- 549β电机715α电机牛米
- 卡盘直径
- 12英寸
- X 轴最大移动速度
- 18 m/min
- Z 轴最大移动速度
- 18 m/min
- X-轴行程
- 300 mm
- Z轴行程
- 520 mm
- 炮塔式
- 水平8站式
- 工具尺寸
- 25×25/Φ50 毫米
- 加工精度
- IT6~IT7 -
- 车削外圆表面粗糙度
- 6 微米
- X-轴
- 0.005 mm
- Z-轴
- 0.005 mm
- 磁盘
- 350 kg
- 主机
- 6800 kg
- 长×宽×高
- 2260×1780×2880 mm
- 子类别
- 车床
- 产品编号
- 106130581
描述
V4 series CNC vertical lathe
It is suitable for machining wheel hub, brake disc, flywheel and other auto parts, and also used for soft turning and hard turning of bearings, and can realize turning instead of grinding. With the addition of auxiliary axis, it can realize the clamping tool turning of brake disc, greatly improving the efficiency and precision level of machining.
1.Integral external protection – Integral protection structure ensures waterproof performance
2.Lightweight inner sliding door – Lower working strength and better protection
3.Compact feed structure, using linear guide, fast moving speed, good machining accuracy, high reliability
4.Water tank make the overall layout more reasonable and occupy less space
5.Adopt servo main motor, which can provide better power performance
6.The bed has higher rigidity; the increased chip discharge angle is more conducive to chip discharge
