新 铭牌自动激光打标机 在 山东省, 中国

规格参数

新旧状况
激光源
光纤激光器
输出功率
20 瓦 / 30 瓦 / 50 瓦 / 100 瓦
波长
1060nm
光束质量
<1.5
重复频率
10KHz ---100KHz
脉冲能量
4mJ
光束发散
-0.3 ---+0.3mrad
激光类
四号
决议
18μ
重复性
50μ
标记范围
110*110mm
线性速度。
800 字符/秒
打标线速度
≤12,000毫米/秒
最小线宽。
0.012mm
最小字符尺寸
0.15mm
重复精度。
±0.003mm
输入功率
0.6KW
电来源
220 伏 / 单相电路 / 50/60Hz / 4A
子类别
机器
子类别 2
激光打标机
产品编号
105077337

描述

Fiber laser marking machine special for the high precision laser marking on the METALS AND non metals materials such as STEEL, AL,BRASS,ALLOY ET.AND Plastic, ,Button ,Keyboards etc.

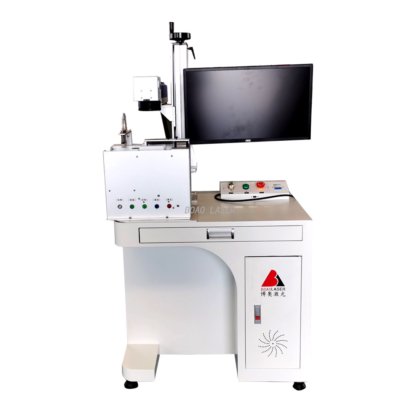

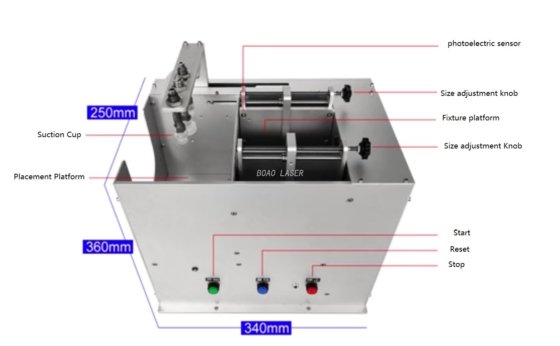

Nameplates Automatic Laser Marking Machine
Fiber Laser 20W/30W/50W/100W
Net size : 80*60*130cm /N.W:120kgs

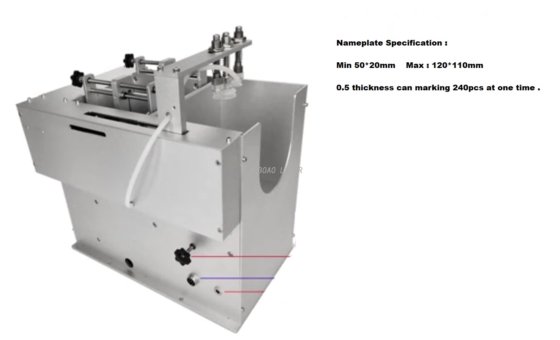

Nameplates Specification : Min 20*50mm , Max 110*120mm.

0.5mm thickness Nameplates can loading 240 pcs at one time.
Fiber laser marking machine special for the high precision laser marking on the METALS AND non metals materials such as STEEL, AL,BRASS,ALLOY ET.AND Plastic, ,Button ,Keyboards etc.
Features:
1.Marking high precision spare parts , such as Gold, Silver, Jewelry, Electronic spare parts etc.
2. High speed marking speed and perfect marking effects.
3.Working time : 100000 hours don't need change any consumptive materials .
4.CE certificates 5.Compact designing .
6.Min marking letter : 0.15mm
Delivery Time:1 week/ Transportation: BY SEA ,AIRLINE
Application & Materials:
