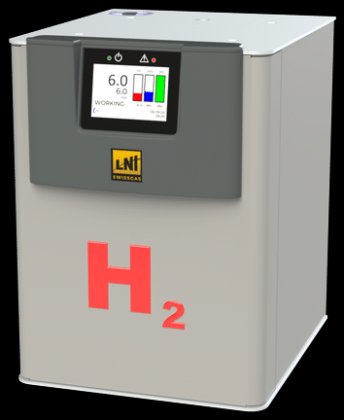

新 HG KUBE V2 在 米兰, 伦巴第, 意大利
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Model hg kube v2
- 120180120 D180 D250300250 D300 D
- Electrolytic cell
- PEM technology
- Drying system
- Static dryerDesiccant columnStatic dryerDesiccant column
- H2 purity *1
- Up to 99.9996%
- Outlet pressure
- 10 bar (145 psi)
- Max h2 flow-rate (scc/min)
- 120180120180250300250300
- Dimensions (w x d x h)
- 26 x 37 x 36 cm
- Net weight (no water in tank)
- 15 kg15,8 kg
- Rs232
- Standard
- Rs485
- Standard
- Parallel mode
- Optional
- Quality required
- Deionized, ASTM II, <0.1uS
- Internal tank capacity
- 1.2 L
- Autorefill
- Optional
- Type of connection
- IEC 320-C14 (desktop adapter)
- Power supply voltage
- 100-240 Vac (±10%) 50/60 Hz
- Nominal power (max)
- 160W220W
- Hydrogen outlet
- 1/8” compression fitting
- Water
- Quick release push-in fitting
- Working temperature
- 5-35°C (41-104°F)*2
- Storage temperature
- 1-50°C (34-122°F)
- Humidity (max, non condensing)
- 70% [5-40°C (41-104°F)]
- Noise
- < 35dB(A)
- Ip rating
- IP20
- Pollution degree rating
- 2 (with no aromatic compounds)
- Altitude
- < 2000m
- 产品编号
- 105031148
描述
The HG KUBE V2 is able to generate up to 300 cc/min of Hydrogen with purity better than 99.9996% and pressure up to 10 bar (145 psi). The HG KUBE V2 includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved.
The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its unique humidity safe guard, it is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
