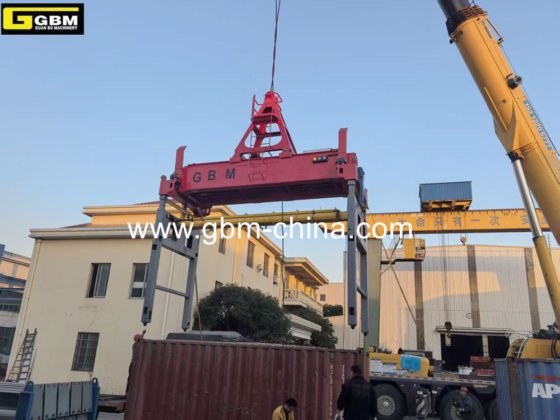

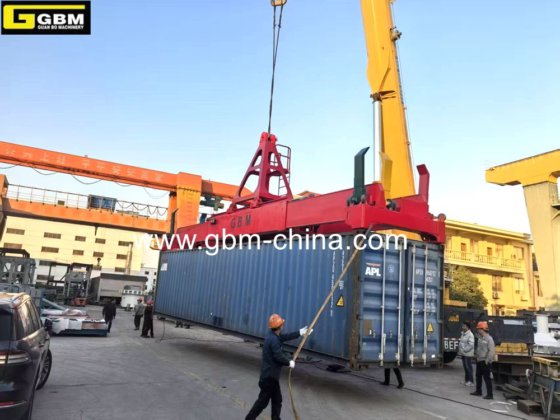

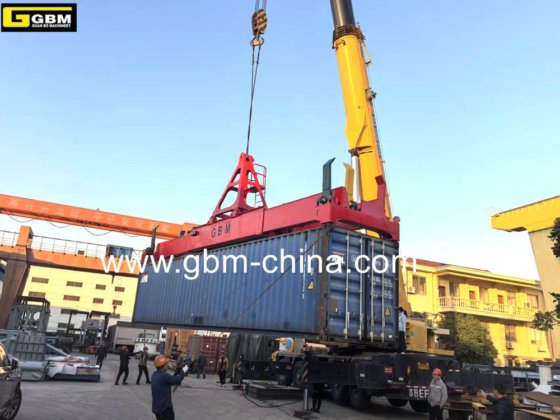

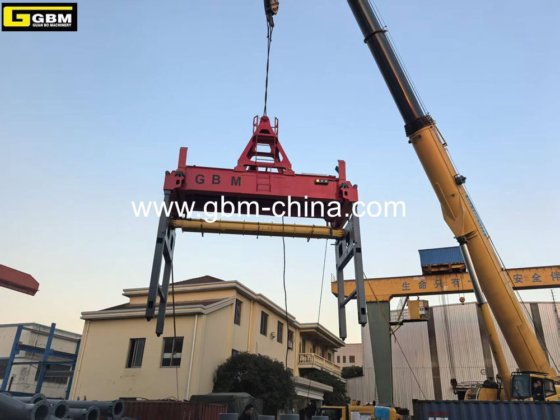

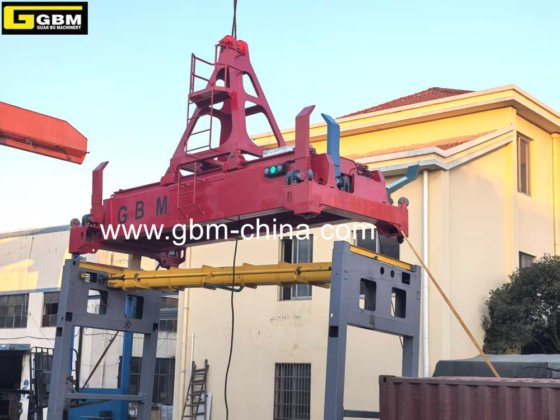

Manufacturer of Ship to Shore spreader Hydraulic telescopic Spreader container spreader 20ft 40ft 45ft habor crane spreader
1.Scope of supply
One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.
Item
20'
40'
Rated SWL
25-35T
32-45T
Max. SWL
40T
50T
Dead Weight
1.2-2.6T
1.2-2.6T
2.Overall Dimensions
Item
20'
40'
Distance between lock centers(length)
≈ 5853 mm
≈11985 mm
Distance between lock centers(width)
≈ 2260 mm
≈2260 mm
Overall Length
≈ 6058 mm
≈12188 mm
Overall Width
≈ 2610 mm
≈2610 mm
Frame Height
≈ 636 mm
≈731 mm
3. Technical Parameter
Item
20'
40'
Dia. of pressed wire rope slings
32 mm
36 mm
Length of pressed wire rope slings
3.5m per piece
