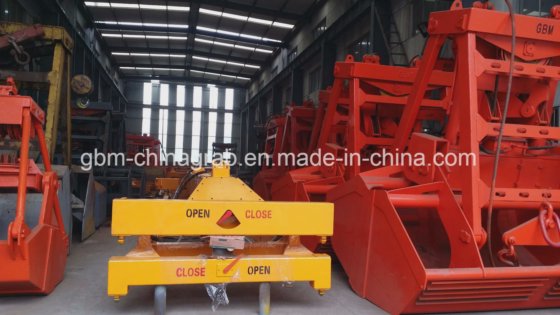

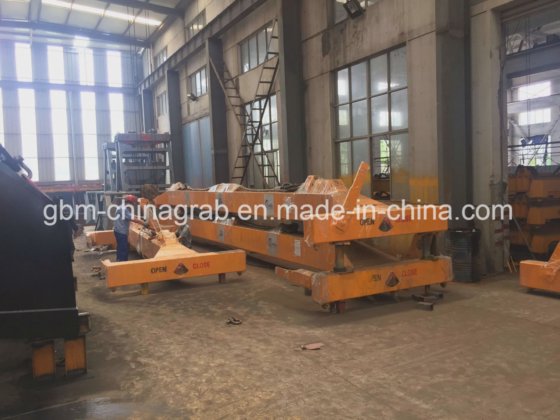

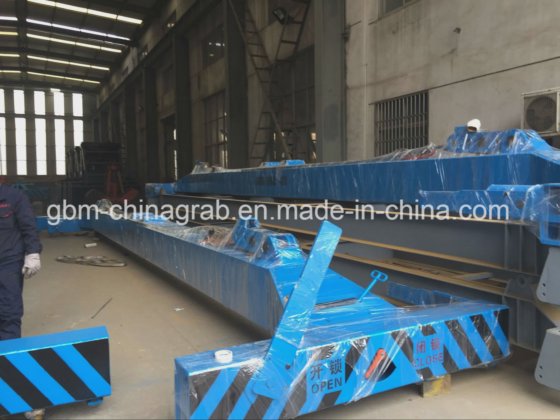

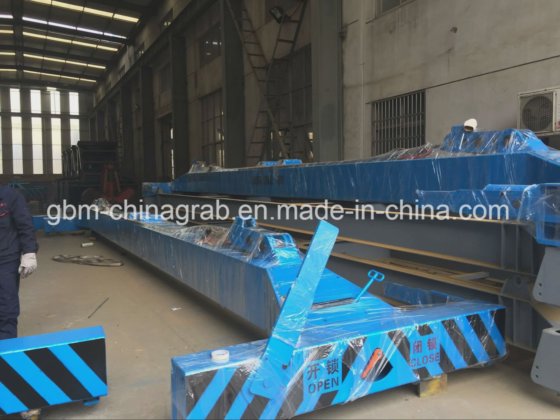

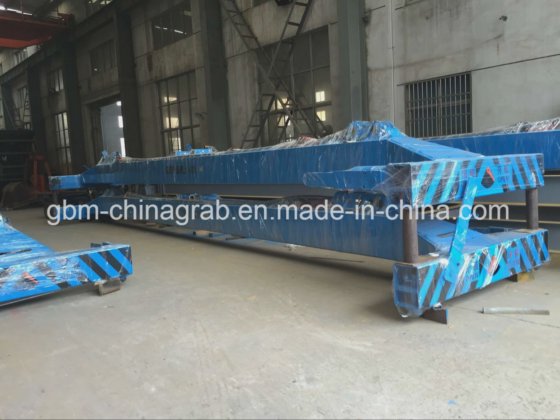

新 新型I型半自动集装箱吊具 集装箱起重吊具 在 上海市, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
描述
Technical Specification
1.Scope of supply
One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.
Item
20'
40'
Rated SWL
25-35T
32-45T
Max. SWL
40T
50T
Dead Weight
1.2-2.6T
1.2-2.6T
2.Overall Dimensions
Item
20'
40'
Distance between lock centers(length)
≈ 5853 mm
≈11985 mm
Distance between lock centers(width)
≈ 2260 mm
≈2260 mm
Overall Length
≈ 6058 mm
≈12188 mm
Overall Width
≈ 2610 mm
≈2610 mm
Frame Height
≈ 636 mm
≈731 mm
3. Technical Parameter
Item
20'
40'
Dia. of pressed wire rope slings
32 mm
36 mm
Length of pressed wire rope slings
3.5m per piece
(4 pieces for each set)
8.5m per piece
(4 pieces for each set)
Steel Frame
Services offered by seller
该卖家提供备件
该卖家提供维修保养服务
该卖家提供运输和物流
该卖家提供新机器
该卖家提供咨询服务
该卖方可以帮助您计划和执行整个项目
本卖家提供现场拆装
$5,000 USD
