新 API 16A 油田 Cameron 防喷器组/环形防喷器/闸板防喷器手册 在 山东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
描述

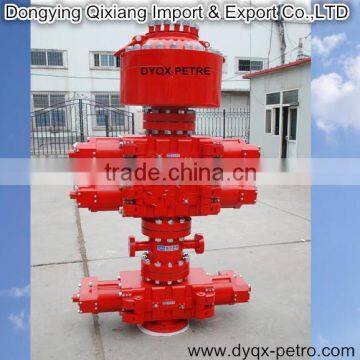

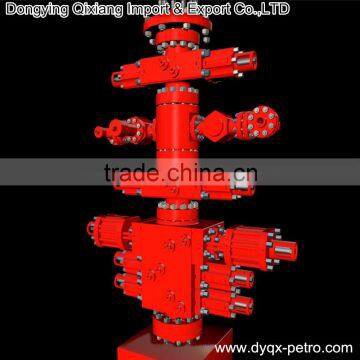

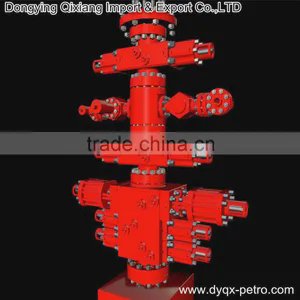

API 16A oilfiled BOP stack/ annular BOP/Ram bop
api bop stack Feature
1, standard API 16A
2, Bore dia.: 7 1/16(180mm)21 1/4(540mm)
3, Pressure: 3000 psi (500mpa)5000psi (35mpa).
SPECIFICATIONS-MODEL FH ANNULAR BOP
Model
FH28-21
FH35-21
FH18-35
FH28-35
FH35-35
Bore Dia.
mm
280
346
180
280
346
in
11
2013-5-8
2007-1-16
11
2013-5-8
Rated Working Pressure
Mpa
21
21
35
35
35
Psi
3000
3000
5000
5000
5000
Shell Testing Pressure
Mpa
42
42
70
70
70
Psi
6000
6000
10000
10000
10000
Recom.Hyd.Pressure
Mpa
8.4-10.5
Psi
1200-1500
Liters to Open
L
33
66
15
57
66
Usgal
8.68
17
4
15
17
Liters to Close
L
48
90
20
72
90
Usgal
12.6
24
5
19
24
Inlet and Outlet Size of Control Pipeline
NPTI
NPTI
NPTI
NPTI
NPTI
NPTI
Working Temperature
-29-121
Media
Crude oil,natural gas drilling fluid containing H2S
Weight
kg
3272
5352
1444
4328
6384
ibs
9340
11800
3184
9522
14015
Dimensions(ODXH)
mm
1032x930
1245x1090
745x788
1135x1065
1271x1220
in
45x42
49x43
29x31
45x42
50x48
