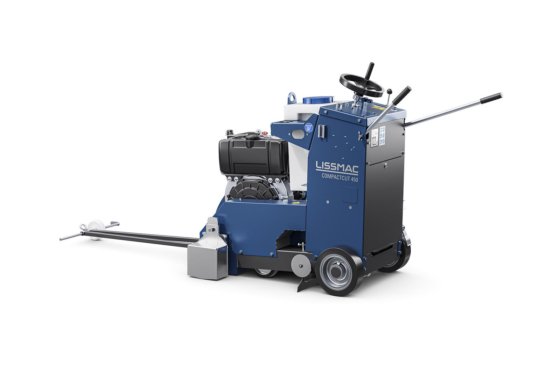

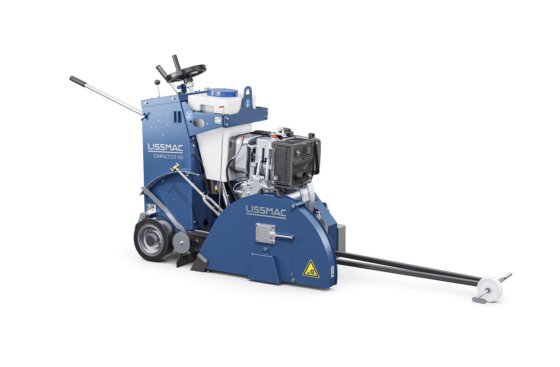

新 COMPACTCUT 450 D 在 巴特武尔察赫, 巴登-符腾堡州, 德国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- Cutting depth max.
- 270 mm
- Saw blade diameter
- 500 - 700 mm
- Saw blade holder
- 25,4 mm
- Drive motor
- 1-cylinder diesel SUPRA 1D81Z EU Stage V
- Max. output power
- 10,1 kW
- Saw blade speed
- 1600 1/min
- Left/right cut
- Yes
- Forward cut
- electric 0 - 48 m/min
- Cutting backwards
- electric 0 - 25 m/min
- Dimensions (l/w/h)
- 1200 / 690 / 1130 mm
- Mass
- 385 kg
- 产品编号
- 102826499
描述
Select your country below so we can show you the correct information for your location.
Compact floor cutter with scissor principle
Drive via robust hydrostat, which ensures smooth, controlled machine guidance
Optimum power transmission thanks to robust high-performance V-belts
Torsion-resistant sheet metal frame construction in sandwich design
The compact design and balanced chassis allow easy maneuvering on the construction site
The low center of gravity ensures an exact saw cut
The height-adjustable handles allow ergonomic operation of the device
The saw blade hood can be folded up at the front as standard for overcuts
Very quick conversion from left-hand to right-hand cutting
Easy access for common maintenance work (air filter, battery, oil and fuel filter) thanks to optimally positioned drive unit
Parking brake and freewheel as standard
The saw blade is lowered and raised steplessly using the hand crank
