新 建大 250T-全自动高速方底纸袋机 在 浙江省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 切袋长度(c)
- 240-470 毫米
- 剪下纸袋手柄的长度
- 240-370 毫米
- 纸袋宽度(w)
- 110-250 毫米
- 手柄纸袋的宽度
- 120-250 毫米
- 纸袋底宽(h)
- 65-150 毫米
- 纸张厚度
- 50-150g/㎡
- 机器速度
- 30-180 件/分钟
- 纸袋速度
- 30-150 件/分钟
- 纸卷宽度
- 360-830 毫米
- 卷纸直径
- Φ1500mm
- 纸张内径
- Φ76mm
- 便携纸袋沉甸甸
- 80-150g/㎡
- 手柄的纸卷宽度
- 390-830 毫米
- 手柄长度
- 310mm
- 贴片长度(a)
- 95mm
- 手补宽度(b)
- 45-50 毫米
- 处理距离(f)
- 47mm
- 纸绳高度(d)
- 95mm
- 绳索直径
- Ф3-5 毫米
- 修补纸卷直径
- ф1200mm
- 修补纸厚度
- 90-110g/㎡
- 菜刀
- 锯齿切割
- 机器功率
- 380 伏 3 相 4 线 41.5 千瓦
- 总重量
- 15000kg
- 机器尺寸
- 14200x5316x2400mm
- 分类
- 紙袋機 在 中国
- 子类别
- 纸袋机
- 子类别 2
- 辅助设备
- 产品编号
- 101619922
描述
Technical Parameter
Main features
Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.
2.Adopt Germany REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.
Germany REXROTH servo motor and German SICK Photoelectric eye correction, tracking printing bag accurately.
4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt YOUDAO, reduce adjustment time..
250T-

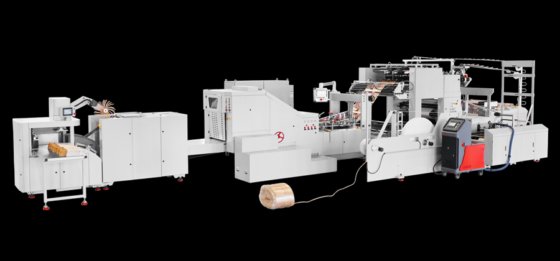

Automatic High Speed Square Bottom Paper Bag Machine Could Be Customized With 2 Colors Printing Machine.
Please send inquiry to get more detailed information.
Reference Picture as below:
