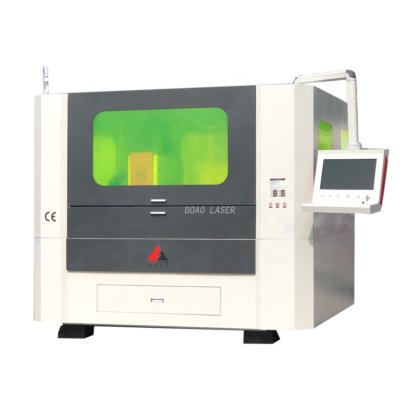

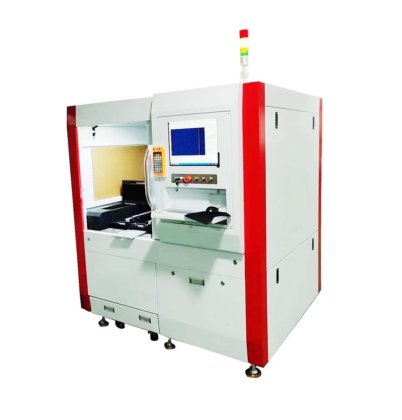

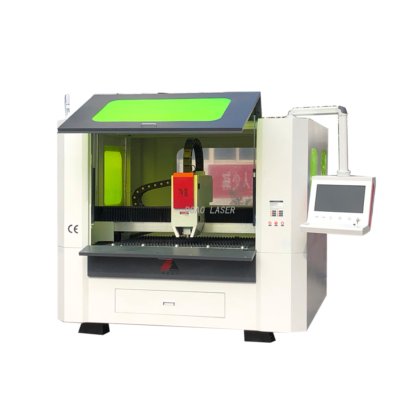

新 BFC 高精度激光切割机 在 山东省, 中国
新
Doubleclick to zoom in
请联系卖家咨询
更多照片和设备细节。
规格参数
- 新旧状况
- 新
- 激光型
- 原装进口光纤激光器
- 激光波长
- 1060nm
- 激光最大功率
- 1000W
- 最大切割厚度
- ≤8mm
- 总耗电量
- <14KW
- 工作尺寸
- 600x400mm / 800x800mm / 1300x900mm
- Max.cutting speed
- 0-30米/分钟（取决于材料和厚度）
- X、y、z 轴方向精度
- ≤±0.05mm/m
- X、y、z 轴重复精度
- ≤±0.03mm /m
- 最小线宽
- ≤0.15mm
- 最大空运行速度
- 120m/min
- 行驶路线
- 进口伺服电机
- 传输途径
- X、Y 轴由伺服电机驱动
- 工作台最大负载
- 1600 公斤
- 冷却系统
- 水冷却
- 连续工作时间
- 24 小时
- 环境温度
- 0-35°C
- 电力需求
- 380 伏/3 相/50 赫兹或 60 赫兹
- 子类别
- 机器
- 产品编号
- 100303779
描述
Our Fiber Laser Cutting Machine Design
BFC SERIES XY Axis Worktable Model Fiber laser cutting machine adopts the most sophisticated Germany IPG or SPI or Rofin or Raycus Fiber Laser of China, combining Vertical Type XY Axis worktable movement designed by our company.
Application Industries
Fiber Laser Cutting Machines mainly Cutting Stainless Steel , Carbon Steel , Aluminum, Brass , Alloy Steel etc. such as Kitchen Ware, Chassis and Cabinet,Metal Pipe,Lamp&Lanterns,Metal Ware,Hardware,Precision Machinery,Auto Parts,Eelevator,Nameplates,Advertisement,Electronics,Toys and other Industries.
Laser head of Raytools with Auto Focusing Function
FEATURES
1.X Axis =600mm,Y Axis =400mm,Z Axis =100mm Travel .
2.X ,Y Axis Equipped Liner Motor Module Group, Z Axis Equipped 200W Servo Motor.
3: X, Y, Axis Orientation Precision:≤±0.003mm
4.X, Y Axis Repeat Precision:≤±0.001mm
5. Z Axis Orientation Precision :≤±0.031mm / Repeat Precision :0.015mm
6.Min line width:≤0.15mm
7.
